Product parameters



Material: Aluminum
Surface treatment: tin-plated
Prefilled with contact grease and sealed with cap
In accordance with DIN46329

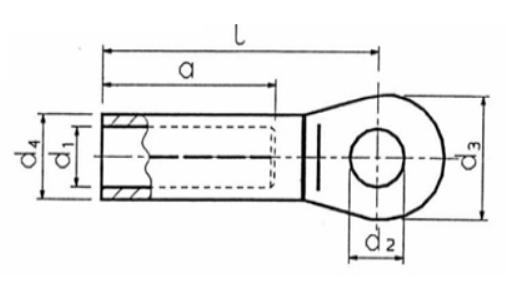

Cat No. Cross Section(mm²) Main Dimensions(mm)
d1 d2 d3 d4 a L
AU-16 16 5.8 8.4/10.5 25 10 30 51
AU-25 25 6.8 8.4/10.5 25 12 30 51
AU-35 35 8 8.4/10.5 25 14 35 56
AU-35 35 8 8.4/10.5 25 14 35 56
AU-50 50 9.8 8.4/10.5/13 25 16 42 62
AU-70 70 11.5 8.4/10.5/13 25 18 52 74
AU-95 95 13.2 10.5/13 25 22 56 80
AU-120 120 14.7 10.5/13/17 30 23 56 84
AU-150 150 16.3 10.5/13/17 30 25 60 90
AU-150 185 18.5 10.5/13/17 30 27.2 60 94
AU-240 240 21 13/17/21 38 30 70 105
AU-300 300 23.3 13/17/21 38 34 70 108

,
