DL Aluminum Cable Lug

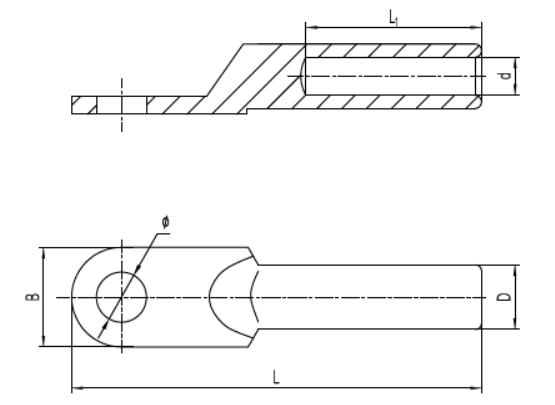

Cat.No. Φ (mm) d (mm) D (mm) B (mm) L₁ (mm) L (mm) DL - 10 8.5 5.3 9 15 30 68 DL - 16 8.5 5.5 10 16 32 70 DL - 25 8.5 7 12 18 34 75 DL - 35 10.5 8.5 14 20 40 85 DL - 50 10.5 9.5 16 23 42 90 DL - 70 12.5 12 18 26 47 102 DL - 95 12.5 13 21 28 50 112 DL - 120 14.5 15 23 30 53 120 DL - 150 14.5 16 25 34 55 126 DL - 185 16.5 18 27 37 58 133 DL - 240 16.5 20 30 40 60 140 DL - 300 21 23 34 45 65 165 DL - 400 21 26 38 52 70 170 DL - 500 21 29 42 60 75 190 DL - 630 21 34 54 78 80 225 DL - 800 - 38 60 100 105 270
