Soldered heat shrink tubing

It contains fast hot melt adhesive, which is firm and reliable, leak-proof, high-temperature resistant, and made of flame-retardant material.

•

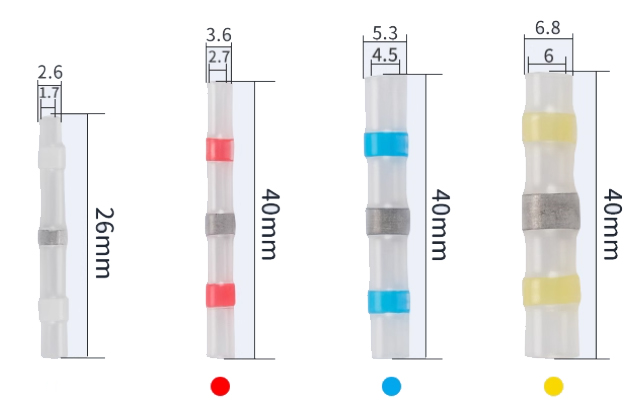

White	Red	Blue	Yello
SST-S11	SST-S21	STT-S31	SST-S41
0.25-0.34mm2	0.5-1.0mm2	1.5-2.5mm2	4.0-6.0mm2

Performance Parameters

Working Temperature: It can work normally in the temperature range of -55℃~125℃。

Dielectric Strength: It can withstand an electric strength of 1KV, ensuring good insulation performance.

Shrink Temperature: The heat - shrinkable tube starts to shrink at 80℃.

Solder Melting Temperatures: Solder starts to melt at 138℃ and completely melts at 160℃,

which is convenient for soldering and forming a reliable connection.
