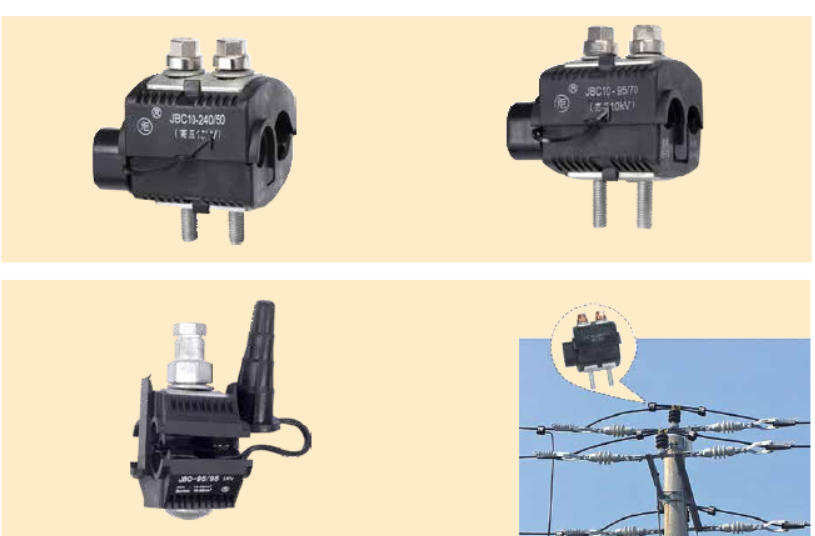

JBC Series Insulation Piercing Connector

Application

· The JBC series insulation piercing connector is suitable for the tapping and splicing of insulated overhead conductors.

· For the connection of insulated overhead lines.

Features and Benefits

·Simple installation: There is no need to strip the insulation layer of the conductor during installation. Just put the main wire and branch wire into the connector at the specified position and evenly break off the torque nuts with an insulated socket wrench.

· Low contact resistance and low temperature rise of the connector: The special torque nuts ensure a constant piercing force, enabling the connector to make good electrical contact with the conductor without excessive damage to the conductor, thus ensuring the normal service life of the overhead insulated conductor.

· Low contact resistance and low temperature rise of the connector.

· Sealed structure and high insulation: The interior of the connector is filled with insulated thermally conductive grease. After installation, the entire conductor forms a fully enclosed structure, which improves the insulation strength and safety. The insulation performance is excellent, with a withstand voltage of more than 3.5kV at 1kV and more than 18kV at 10kV.

· Wide application range: It is suitable for the tapping of copper and aluminum wires, the tapping of conductors with the same or different diameters, the butt joint of conductors with the same diameter, and the transition connection of copper and aluminum insulated conductors.

· Simple installation: Put the main wire and the branch wire directly into the connector without wire stripping, tighten the torque nuts evenly with an insulated socket wrench.

· Low resistance and low temperature - rise: The special bolts can ensure equal piercing pressure for superior electric contact and less wire damage, in order to make sure the normal service life of the pierced wire.

· Sealing structure and good insulation: The connectors are filled with insulated lubricant. As a result, the sealing and waterproof structure can increase the insulated intensity and safety.
