Product parameters

JBCD10 Series 10kV Insulation Piercing Grounding Connector

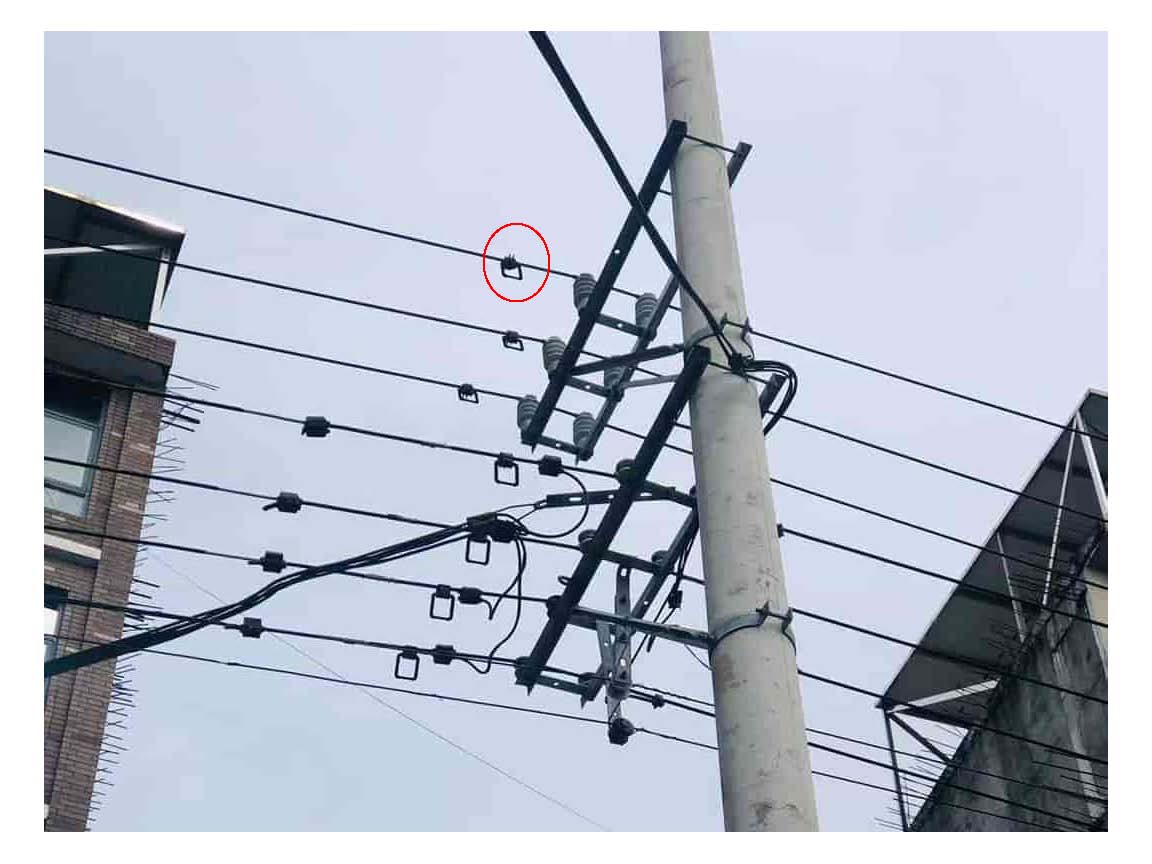

Application to grounding protection during electric power construction for 10kV or below insulated overhead distribution systems.

Specification

Code No. Cat No. Main line
(mm2) Branch line
(mm2) A
(mm) B
(mm) C
(mm) Nominal current (A) Bolt No.

JBC10 - 1 JBC10 - 95/70 25 - 95 16 - 70 64 69.5 90 207 2

JBC10 - 2 JBC10 - 240/50 95 - 240 16 - 50 75 69 90 162 2

JBC10 - 3 JBC10 - 240/150 95 - 240 50 - 150 85 69 100 342 2

JBC10 - 4 JBC10 - 240/240 95 - 240 95 - 240 88 69 100 476 2
