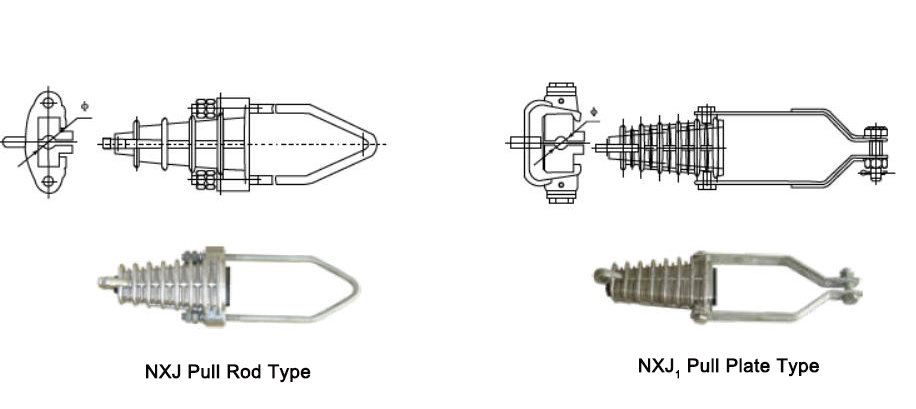

Wedged Anchoring Clamp for Insulated Aerial Lines

Cat.No.	Overhead Insulated Conductor/1kV				Overhead Insulated Conductor/10kV				Breaking Load (kN)
	Conductor Specification (mm2)	Conductor Outer Diameter (mm)	Inner Wedge	Gripping Force (kN)	Conductor Specification (mm2))	Conductor Outer Diameter (mm)	Inner Wedge	Gripping Force (kN)
NXJ-1, NXJ1-1	25	8.4	1kV 25	2.5	25	13.8	10kV 25	2.5	14.5
	35	9.8	1kV 35	3.4	35	14.8	10kV 35	3.4
	50	11.1	1kV 50	4.6	50	16.1	10kV 50	4.6
	70	12.8	1kV 70	6.8
	95	14.8	1kV 95	9
NXJ-2, NXJ1-2	95	14.8	1kV 95	9	50	16.1	10kV 50	4.6	22.5
	120	16.2	1kV 120	11.3	70	17.8	10kV 70	6.8
	150	18.2	1kV 150	13.7	95	19.6	10kV 95	9
					120	21	10kV 120	11.3
					150	22.6	10kV 150	13.7
NXJ-3, NXJ1-3	185	20.2	1kV 185	17.4	120	21	10kV 120	11.3	36.5
	240	22.8	1kV 240	22.6	150	22.6	10kV 150	13.7
					185	24.2	10kV 185	17.4
NXJ-4, NXJ1-4					240	26.4	10kV 240	22.6	46
					300	28.6	10kV 300	28.2
NXJ-2Q, NXJ1-2Q	95	14.8	1kV 95	9	70	17.8	10kV 70	6.8	22.5
	120	16.2	1kV 120	11.3	95	19.6	10kV 95	9
	150	18.2	1kV 150	13.7	120	21	10kV 120	11.3
NXJ-3Q, NXJ1-3Q	185	20.2	1kV 185	17.4	150	22.6	10kV 150	13.7	36.5
	240	22.8	1kV 240	22.6	185	24.2	10kV 185	17.4
					240	26.4	10kV 240	22.6
NXJ-4Q, NXJ1-4Q					240	26.4	10kV 240	22.6	46
					300	26.8	10kV 300	28.2
