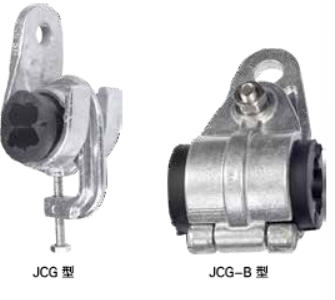

JCG Hanging Clamp

Application

The JCG series hanging clamps are suitable for suspending insulated conductors in overhead distribution lines with a voltage of 1kV and below.

Designed to hang LV insulated overhead lines of the self - supporting system.

Features and Benefits

The reinforcing plate is relatively wide, and the fixed lines are firm.

The structure is compact, and the insulation performance is goo

Composed of an aluminum support and an anti - UV black - resistant thermoplastic insert to grip conductors.

The flexible bushing changes with conductors and sections.

Wide doubling, and reliable fixed lines.

Compact structure, and good insulation.

Specifications

Description	Type	Conductor Range (mm²)	Note
Hinge type	JCG - 1B	16 - 50 (2 - core or 4 - core)	Body is aluminum alloy, hinge - design for 2 - core or 4 - core cables.
Hinge type	JCG - 2B	70 - 120 (2 - core or 4 - core)	Body is aluminum alloy, hinge - design for 2 - core or 4 - core cables.
Hook type	JCG - 1	16 - 50 (2 - core or 4 - core)	Body is aluminum alloy, span - design.
Hook type	JCG - 2	70 - 120 (2 - core or 4 - core)	Body is aluminum alloy, span - design.
Hook type	JCG - 3	150 - 240 (2 - core or 4 - core)	Body is aluminum alloy, span - design.

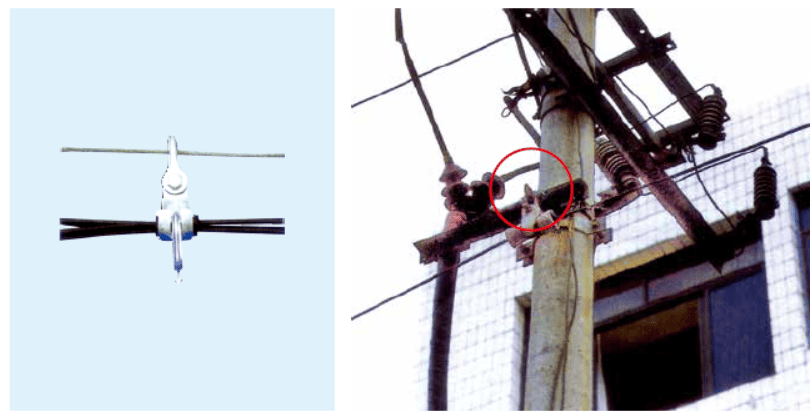

Installation Picture
