Suspension Clamp for L-ABC lines with insulated neutral messenger

1. Clamp Function & Structure

• The clamps are designed to hang LV-ABC lines with insulated neutral messengers. The neutral messenger is fixed by an adjustable grip device. A movable link allows longitudinal and transversal movement of the clamp body.

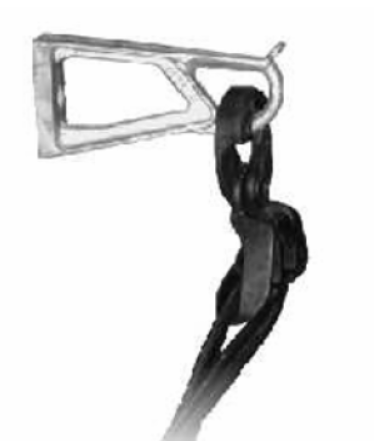

• Standard clamp version ES is supplied with preinstalled bracket. The upper bulge of the bracket prevents the clamp from turning over the bracket.
• Clamps are also available without bracket (PS) . These clamps (PS) are fixed to a pole with a pig tail hook or bracket.

2. Performance & Material Features

• Toolfree installation
• No loosable parts
• Clamp and link made of polymer giving an additional insulation between the cable and the pole.
• Clamp and movable link made of weather and UV resistant glass fibre reinforced polymer
• Universal fixing of bracket by 1 bolt M16 or stainless steel strap of 20×0.7 mm.
• Bracket made of corrosion resistant aluminium alloy

3. Line Deviation Angles

The lines can be in straight direction and in line deviation angles up to 30° towards the pole and up to 50° pulling away from the pole.

For larger line deviation angles 2 anchor clamps shall be used.
