Anchoring Clamp for LV-ABC with Insulated Neutral Messenger

1. Clamp Design & Function

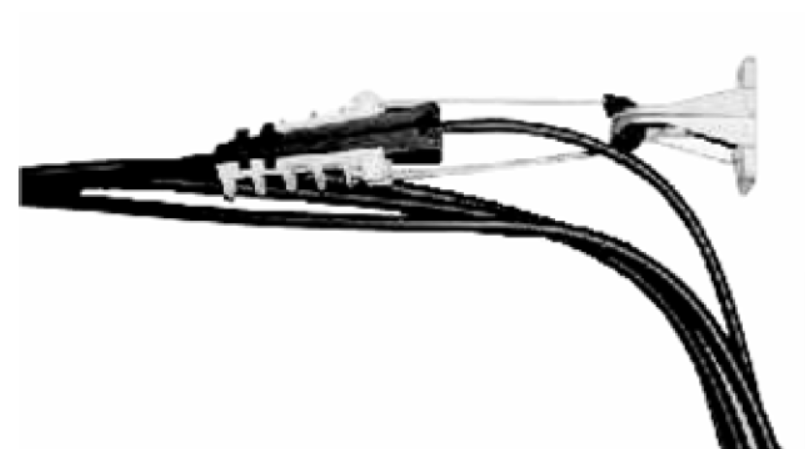

• The clamps are designed to anchor LV-ABC lines with insulated neutral messenger. The clamp consists of an aluminium alloy casted body and self adjusting plastic wedges which clamp the neutral messenger without damaging the insulation.
• The flexible bail with an insulation wear-resistant saddle allows installations of up to 3 clamps on a bracket. The clamp and the bracket are available separately and together as assembly.

2. Performance & Material Specifications

• Toolfree installation
• No loosable parts
• Clamp body made of corrosion resistant aluminium alloy, bail of galvanized steel, wedges of weather and UV resistant polymer
• Universal fixing of bracket by 2 bolts M14 or stainless steel straps of 20×0,7 mm.
• Bracket made of corrosion resistant aluminium alloy

3. Maximum Line Deviation Angles

Maximum line deviation angles of 50° for single and 100° for double anchoring:
