Aluminum Alloy Envelope-Type Suspension Clamps

Parameter Table

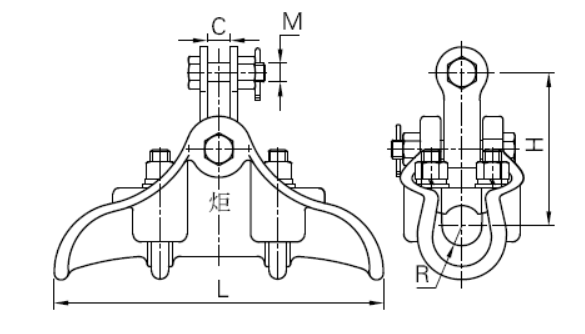

Cat.No.	Applicable Stranded Conductor Diameter Range (Including Wrapping) (mm)	Main Dimensions (mm)					Rated Breaking Load (Failure Load) (KN)	Weight (kg)
		L	C	R	H	M
CGF-5C	24.2~33.0	300	20	17	130	16	70	3.5
CGF-6C	34.0~46.0	300	20	23	130	18	90	4.8
XG-4022	13.2-22.0	210	20	11	120	16	40	2.9
XG-4028	19.6-28	250	20	14	130	16	40	3.5
XG-4034	27.4-34	280	20	17	130	16	40	4
XG-6028	19.6-28	250	20	14	130	16	60	3.5
XG-6034	27.4-34	300	20	17	130	16	60	4
XG-6040	32-40	300	20	20	135	16	60	4.8
XG-8034	27.4-34	300	20	17	130	16	80	4.8
XG-8040	32-40	300	20	20	140	16	80	5
XG-8046	36.8-46	330	20	23	140	16	80	5.8
XG-8054	43.2-54	345	20	27	150	16	80	7
XGA-6034	27-33	300	20	17	130	16	60	4.5
XGA-6040	32-39	330	20	20	135	16	60	5.8
XGA-6046	39-45	360	20	23	135	16	60	6.2
XGA-6054	43-53	420	22	27	150	18	60	9.5
XGA-10040	32-39	330	22	20	140	18	100	6
XGA-10046	39-455	360	22	23	145	18	100	6.2
XGA-10054	43-53	420	22	27	150	18	100	9.5
XGB-6034	27-33	300	20	17	130	16	60	4.5
XGB-6040	32-39	330	20	20	135	16	60	5.8
XGB-6046	37-45	360	20	23	135	16	60	6.2
XGB-8034	27-33	300	20	17	135	16	80	4.5
XGB-8040	32-39	330	20	20	140	16	80	5.8
XGB-8046	37-45	360	20	23	140	16	80	6.2
XGB-10046	37-45	360	22	23	145	18	100	6
XGB-10054	43-53	420	22	27	150	18	100	9.5
XGB-12046	37-45	360	24	23	145	22	120	7.5
XGB-12054	43-53	420	24	27	150	22	120	9.5
XGB-16046	37-45	360	24	23	160	24	160	7.5
XGB-16054	43-53	420	24	27	165	24	160	9.5
XGC-8034	27-33	300	22	17	135	16	80	5.1
XGC-8040	32-39	340	22	20	140	16	80	6
XGC-8046	37-45	360	22	23	140	16	80	6.5
XGC-10034	37-33	300	22	17	135	18	100	5.5
XGC-10040	32-39	340	22	20	140	18	100	6.5
XGC-10046	37-45	360	22	23	145	18	100	7.2

Notes

• Material Description: The clamp body and keeper are made of aluminum alloy, the split pin is made of stainless steel, and the rest are made of hot-dip galvanized steel.
