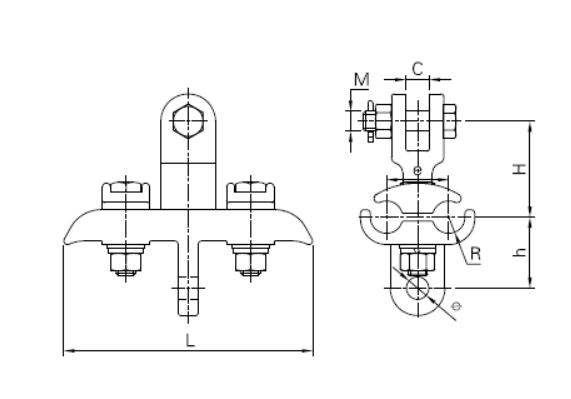

XTS Suspension Clamp for Twin Jumpers

Cat.No.	Overall Dia.(mm)	L (mm)	C (mm)	R (mm)	H (mm)	M (mm)	e (mm)	φ(mm)	Failure Load(KN)	Weight (kg)
XTS - 1	21.0 - 25.0	200	19	13	77	16	50	-	70	3.4
XTS - 2	25.0 - 31.0	200	18	16	77	16	56	18	70	5
XTS - 5	23.0 - 33.0	200	20	17	70	16	60	18	70	4.2
XTS - 6	34.0 - 45.0	250	20	23	103	16	77	18	70	7.5
XTS - 2A	17.0 - 21.0	200	18	11	77	16	50	18	70	4.5
XTS - 2B	21.0 - 27.0	200	18	14	77	16	52	18	70	5
XTS - 2C	29.0 - 35.0	200	19	18	61	16	70	18	40	6.5
XTS - 4028	22.0 - 27.0	200	18	14	77	16	56	18	40	4.8
XTS - 4034	27.0 - 33.0	200	18	17	81	16	60	18	40	5.8
XTS - 4040	32.0 - 39.0	250	18	20	103	16	77	18	40	7.3
XTS - 6022	21.0 - 25.0	200	20	13	77	16	50	18	60	3.4
XTS - 6028	22.0 - 27.0	200	20	14	77	16	56	18	60	5
XTS - 6034	27.0 - 33.0	200	20	17	81	16	60	18	60	6
XTS - 6040	32.0 - 39.0	250	20	20	103	16	77	18	60	7.5

Note: Material: Body, Keeper - malleable aluminium alloy or iron, Split Pin - stainless steel, others - steel, malleable iron, and hot - dip galvanized steel.
