Product parameters

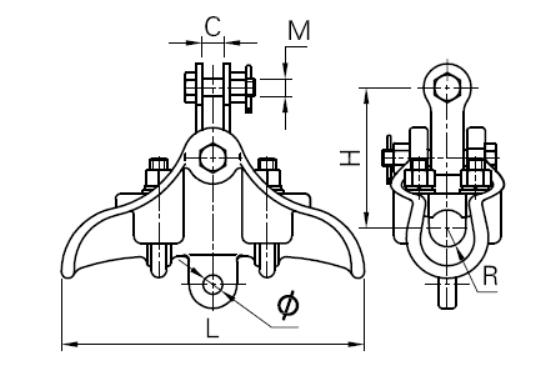

XT Suspension Clamp for Jumper Conductor
Parameter Table

(Cat.No.) Overall Dia.
Including Wrapping (mm)) Main Dimensions (mm) Rated Breaking Load(kN) Weight(kg)

L C R H M φ

XT-4022 13.2 - 22 180 20 11 120 16 18 40 3

XT-4028 19.6 - 28 250 20 14 130 16 18 40 3.6

XT-4034 27.4 - 34 280 20 17 130 16 18 40 4.1

XT-4040 32 - 40 300 20 20 135 16 18 40 4.9

XT-6028 19.6 - 28 250 20 14 130 16 18 60 3.6

XT-6034 27.4 - 34 300 20 17 130 16 18 60 4.1

XT-6040 32 - 40 300 20 20 135 16 18 60 4.9

Note
Material: Body, Keeper - aluminum alloy; Split Pin - stainless steel; Others - hot - dip galvanized steel.
