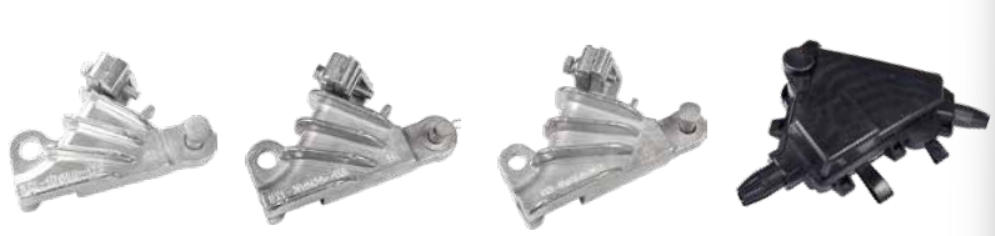

NXL - D Series Self - Lock Aluminum Alloy Strain Clamp (Equivalent to WKH)

Cat.No.	Conductor Diameter(mm)	Conductor Range(mm²) - ACSR(LGJ)	Insulated Aluminum Conductor -Stripping	Insulated Aluminum Conductor - Overall	Min.Grip Strength(kN)	Failure Load(kN)	Insulation Cover
NXL - 1D	8.0 - 12.0	35/6 - 70/10	50 - 95	-	9	16.4	NXL - 50 - 95
NXL - 35/95	8.0 - 12.0	35/6 - 70/10	50 - 95	-	9	16.4	NXL - 50 - 95
NXL - 2D	12.0 - 15.6	70/40 - 95/20	120 - 150	25 - 50	13.6	25.2	NXL - 120 - 150
NXL - 120/150	12.0 - 15.6	70/40 - 95/20	120 - 150	25 - 50	13.6	25.2	NXL - 120 - 150
NXL - 3D	15.0 - 19.0	95/55 - 185/10	185 - 240	70 - 95	22.5	41.5	NXL - 185 - 240、300
NXL - 4D	18.4 - 23.0	185/25 - 240/30	240 - 300	120 - 150	28.2	51.6	NXL - 185 - 240、300
NXL - 4J	22.6 - 26.4	240/50 - 300/15	300 - 400	185 - 240	28.2	51.6	NXL - 185 - 240、300
NXL - 5D	28.3 - 32.8	300/20 - 400/35	400 - 500	185 - 300(20kV)	34	70	-

Note

1. Meaning of letters: N - strain clamp; X - wedge type; L - aluminum alloy; D - single - ear; Numbers - serial number of the type.
2. Grip strength of the clamp shall be more than 65% of conductor breaking strength.
