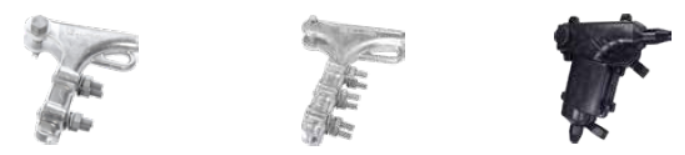

NLL Series Aluminum Alloy Bolted Strain Clamp and Insulation Cover

Application

• The NLL series aluminum alloy strain clamps for distribution are suitable for 10kV and below overhead lines, as well as power plants, distribution stations, and substations. They fix aerial insulated aluminum conductors or bare aluminum conductors to insulators on corner or terminal strain poles, thereby fixing or tensioning aerial conductors. When used with insulated conductors, they are used in conjunction with insulation covers to play an insulation protection role.
• Suitable for distribution wire up to 10kV, fixing the aerial insulation aluminum conductor or bare aluminum conductor to the insulator in the corner or the end of strain pole and tightening the aerial conductor. Insulation cover and strain clamp used together for insulation protection

Insulation Cover Performance Feature

• Power frequency withstand voltage: ≥ 18kV for one minute without breakdown.
• Insulation resistance: > 1.0×10¹⁴ Ω.
• Ambient temperature: -30℃ ~ 90℃.
• Weather fastness: good performance after 1008 hours artificial weathering test.
• Power frequency withstand voltage: ≥ 18kV for one minute without breakdown.
• Insulation resistance: > 1.0×10¹⁴ Ω.
• Ambient temperature: -30℃ ~ 90℃.
• Weather fastness: good performance after 1008 hours artificial weathering test.

High-strength aluminum alloy body without magnetic permeability, with the advantages of high strength and low line loss.
The pressure block is integrated with the "U" -shaped bolt, making installation extremely convenient.
The inclined "U" -shaped bolt makes the wire clamping force large.
Each "U" -shaped bolt tightens a single pressure block to ensure uniform contact pressure.

Cat.No.	Conductor Section (mm2)	Conductor Diameter (mm)	Overall Dia. (mm)	U-Bolts No.	U-Bolts Size	Failure Load (KN)	Insulation Cover Type
NLL-1(19)	16~70	5.1~11.4	7.6~16.2	2	M12	40	NLL-1(19)
NLL-2(22)	50~95	8.5~13.8	8.5~19.6	2	M12	40	NLL-(2)22
NLL-3(29)	70~150	11.4~17.1	11.4~22.6	2	M12	70	NLL-3(29)
				3	M12
NLL-4(32)	120~240	13~18.9	13~26.4	3	M12	70	NLL-4(32)
NLL-5(35)	150~300	17.1~23.8	16.2~29.0	4	M12	70	NLL-5(35)
NLL-6	400~630	26.9~34.8	28.5~40	5	M16	70	-
