Product parameters

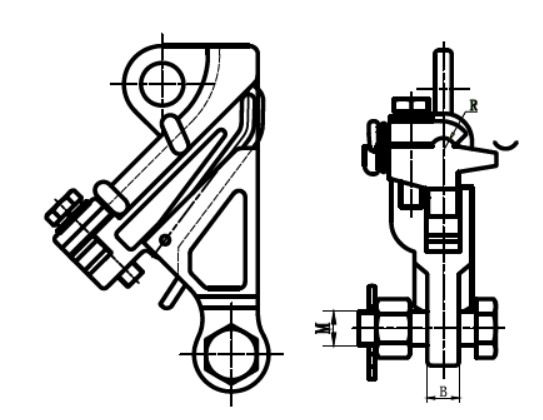

NXL Wedge-type Tension Clamp for Overhead Insulated Aluminum Cable

Cat.No. Conductor Diameter
(mm) M(mm) R(mm) B(mm) Min.Grip Strength(kN) Failure Load(kN)

NXL - 1 35 - 50 16 5 16 4.6 7.4

NXL - 2 70 - 95 16 6 16 9 14.5

NXL - 3 120 - 150 16 8 16 13.7 22.1

NXL - 4 185 - 240 16 9.5 16 22.6 36.5

Note
Meaning of letters: N - strain clamp; X - wedge type; L - aluminum alloy; Numbers - serial number of the type.
Grip strength of the clamp shall be more than 65% of conductor breaking strength.
