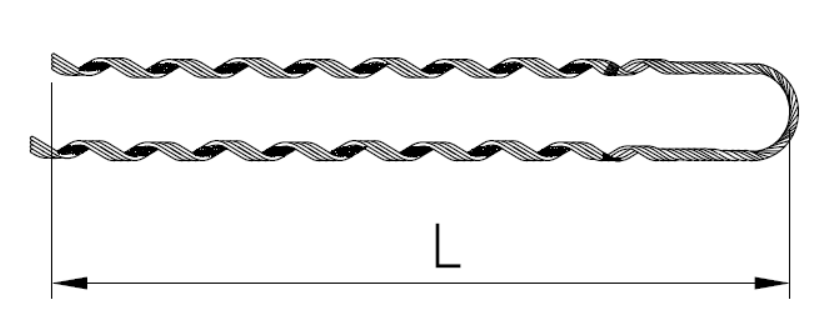

NL Preformed Dead-end Clamp for Insulated Conductor

Cat.No.	Applicable Conductor	L (mm)	Weight (kg)	Matched Fitting
NL-70-50/JY	JKLGYJ-10/50	870	1.1	QXH-0748
NL-70-70/JY	JKLGYJ-10/70	960	1.1	QXH-0748
NL-70-95/JY	JKLGYJ-10/95	1000	1.5	QXH-0748
NL-70-120/JY	JKLGYJ-10/120	1000	1.5	QXH-0748
NL-70-150/JY	JKLGYJ-10/150	1000	1.8	QXH-0748
NL-70-185/JY	JKLGYJ-10/185	990	2.2	QXH-0748
NL-70-240/JY	JKLGYJ-10/240	990	2.2	QXH-0748
NL-70-50/8/GJY	JKLGYJ-50/8	960	1.1	QXH-0748
NL-70-70/10/GJY	JKLGYJ-70/10	1000	1.5	QXH-0748
NL-70-95/15/GJY	JKLGYJ-95/15	1000	1.5	QXH-0748
NL-70-95/20/GJY	JKLGYJ-95/20	1000	1.5	QXH-0748
NL-70-120/20/GJY	JKLGYJ-120/20	1000	1.5	QXH-0748
NL-70-150/20/GJY	JKLGYJ-150/20	990	2.2	QXH-0748
NL-70-150/25/GJY	JKLGYJ-150/25	990	2.2	QXH-0748
NL-70-185/25/GJY	JKLGYJ-185/25	990	2.2	QXH-0748
NL-70-185/30/GJY	JKLGYJ-185/30	990	2.2	QXH-0748
NL-70-240/30/GJY	JKLGYJ-240/30	990	2.2	QXH-0748
NL-70-240/40/GJY	JKLGYJ-240/40	990	2.2	QXH-0748
NL-100-185/25/GJY	JKLGYJ-185/25	990	2.2	QXH-1048
NL-100-185/30/GJY	JKLGYJ-185/30	990	2.2	QXH-1048
NL-100-240/30/GJY	JKLGYJ-240/30	990	2.2	QXH-1048
NL-100-240/40/GJY	JKLGYJ-240/40	990	2.2	QXH-1048

Note: the material for aluminum clad steel wire or hot galvanized steel wire.
