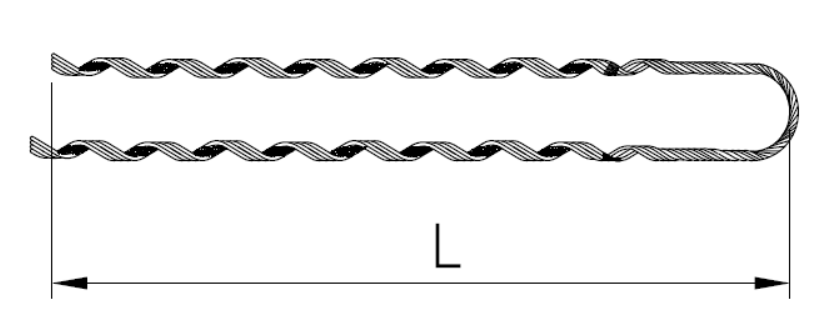

NL Preformed Dead-end Clamp for Bare Conductor

Cat.No.	Applicable Conductor	Dimension (mm) - L	Weight (kg)	Matching Fittings
NL-70-50/8	JL/G1A-50/8	670	0.2	QXH-0748
NL-70-70/10	JL/G1A-70/10	720	0.2	QXH-0748
NL-70-95/15	JL/G1A-95/15	860	0.6	QXH-0748
NL-70-95/20	JL/G1A-95/20	860	0.6	QXH-0748
NL-70-120/20	JL/G1A-120/20	870	0.8	QXH-0748
NL-70-150/20	JL/G1A-150/20	1000	1.1	QXH-0748
NL-70-150/25	JL/G1A-150/25	1000	1.1	QXH-0748
NL-70-185/25	JL/G1A-185/25	1140	1.7	QXH-0748
NL-70-185/30	JL/G1A-185/30	1140	1.7	QXH-0748
NL-70-240/30	JL/G1A-240/30	1250	2.3	QXH-0748
NL-70-240/40	JL/G1A-240/40	1250	2.3	QXH-0748
NL-70-300/25	JL/G1A-300/25	1820	3	QXH-0748
NL-70-300/40	JL/G1A-300/40	1820	3	QXH-0748
NL-100-185/25	JL/G1A-185/25	1140	1.7	QXH-1048
NL-100-185/30	JL/G1A-185/30	1140	1.7	QXH-1048
NL-100-240/30	JL/G1A-240/30	1250	2.3	QXH-1048
NL-100-240/40	JL/G1A-240/40	1250	2.3	QXH-1048
NL-120-240/40	JL/G1A-240/40	1250	2.3	QXH-1248
NL-120-300/25	JL/G1A-300/25	1820	3.8	QXH-1248
NL-120-300/40	JL/G1A-300/40	1820	3.8	QXH-1248

Note: The material is aluminum clad steel wire or hot galvanized steel wire.
