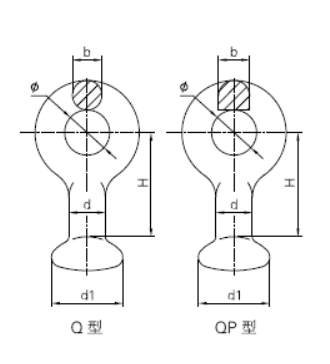

Q/QP Ball Eye

Cat.No.	d (mm)	Φ (mm)	b (mm)	d₁ (mm)	h (mm)	Link Marker	Failure Load(KN)	Weight(kg)
Q-7	17	22	16	33.3	50	16	70	0.3
QP-7	17	22	16	33.3	50	16	70	0.3
QP-10	17	22	16	33.3	50	16	100	0.3
QP-12	17	24	16	33.3	50	16	120	0.4
QP-16	21	26	20	41	60	20	160	0.5
QP-21	25	30	24	49	80	24	210	1
QP-21D	21	29	24	41	70	20	210	0.9
QP-30	25	39	28	49	80	24	300	1.1
QP-0750	17	20	16	33.3	50	16	70	0.3
QP-1050	17	20	16	33.3	50	16	100	0.3
QP-1260	17	24	18	33.3	60	16	120	0.4
QP-1660	21	26	18	41	60	20	160	0.5
QP-2180	21	26	20	41	80	20	210	0.7
QP-3280	25	33	28	49	80	24	320	1.2
QP-42100	29	39	32	57	100	28	420	1.5
QP-55110	32	45	36	65	110	32	550	2.6
QP-76120	37	48	36	73	120	36	760	3.5
