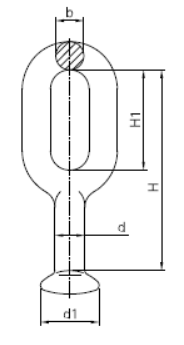

QH Ball Eye (with oval eye)

Cat.No.	b (mm)	d (mm)	d₁ (mm)	H (mm)	H₁ (mm)	Link Marker	Failure Load(KN)	Weight(kg)
QH-7	16	17	33.3	110	57	16	70	0.6
QH-10	18	17	33.3	110	57	16	100	1.1
QH-12	19	17	33.3	120	63	16	120	1.1
QH-16	18	21	41	127	45	20	160	1.3
QH-20/16	22	21	41	135	85	20	160	1.5
QH-21	20	21	41	150	85	20	210	1.3
QH-30	22	25	49	150	98	24	300	1.7
QH-07100	16	17	33.3	100	57	16	70	0.6
QH-10110	18	17	33.3	110	57	16	100	1.1
QH-12120	19	17	33.3	120	63	16	120	1.1
QH-16155	20	21	41	155	100	20	160	1.2
QH-21140	20	21	41	140	85	20	210	1.2
QH-21155	20	21	41	155	100	20	210	1.3
QH-32175	28	25	49	175	110	24	320	2.2
QH-42200	32	29	57	200	120	28	420	3.4
QH-55240	36	32	65	240	130	32	550	6.1

Note: hot-dip galvanized steel
