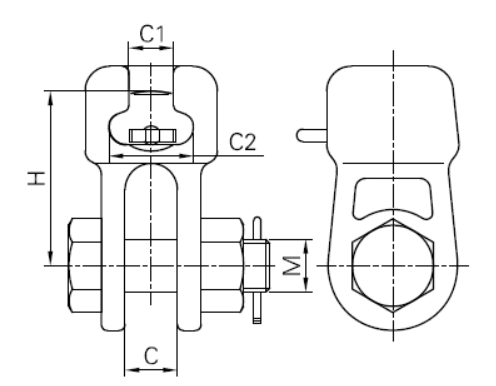

WS Socket Clevis

Cat.No.	C(mm)	C1(mm)	C2(mm)	M(mm)	H(mm)	Link Marker	Failure Load(KN)	Weight(kg)
WS-7	18	19.2	34.5	16	70	16	70	0.97
WS-10	20	19.2	34.5	18	85	16	100	1.7
WS-12G	20	19.2	34.5	18	85	16	120	1.7
WS-12	24	23	42.5	22	90	20	120	3.81
WS-12X	24	19.2	34.5	22	90	16	120	3.1
WS-12A	20	19.2	34.5	22	85	16	120	1.8
WS-16	26	23	42.5	24	95	20	160	2.64
WS-20	30	27.5	51	27	100	24	200	4.3
WS-20DF	30	23	42.5	27	100	20	200	4.5
WS-30	36	27.5	51	36	110	24	300	5.7
WS-16G	22	23	42.5	24	95	20	160	2.64
WS-21G	24	27.5	51	24	100	24	210	3.5
WS-32G	32	27.5	51	30	110	24	320	4.8
WS-42G	36	32	59	36	120	28	420	5.6
WS-55G	40	36	67.5	42	140	32	550	11
WS-0770	20	19.2	34.5	16	70	16	70	0.97
WS-1085	20	19.2	34.5	18	85	16	100	1.7
WS-1290	20	19.2	34.5	22	90	16	120	2.4
WS-1695	24	23	42.5	24	95	20	160	2.64
WS-21100	24	23	42.5	24	100	20	210	3.6
WS-32110	32	27.5	51	30	110	24	320	4.8
WS-42120	36	32	59	36	120	28	420	5.6
WS-55140	40	36	67.5	42	140	32	550	11
WS-76160	42	41	75.5	45	160	36	760	12
