Link Plate

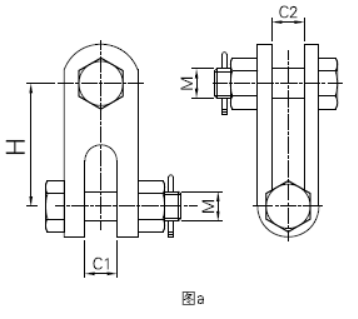

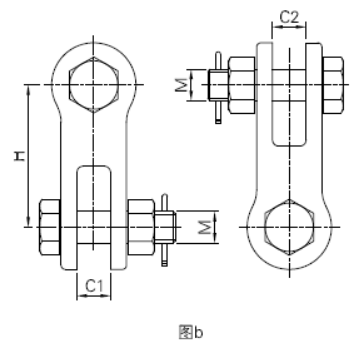

Cat.No.	C₁(mm)	C₂(mm)	M(mm)	H(mm)	Failure Load (KN)	Weight (kg)	Fig
Z-7	18	18	16	80	70	0.56	a
Z-10	20	20	18	80	100	0.87	a
Z-12	24	24	22	100	120	1.16	a
Z-16	26	26	24	100	160	2.38	a
Z-21	30	30	27	120	200	3.8	a
Z-25	34	34	30	120	250	5	a
Z-30	38	38	36	120	300	5.8	a
Z-40	44	44	42	180	400	14	a
Z-50	44	44	42	120	500	8.6	a
Z-16G	24	26	24	90	160	2.835	a
Z-21G	24	26	24	90	210	3.6	a
Z-32G	32	32	30	100	320	4.8	a
Z-42G	36	38	36	110	420	5.2	a
Z-64G	40	44	42	130	640	6.4	a
Z-0780	20	20	16	80	70	0.7	a
Z-1080	20	20	18	80	100	0.9	a
Z-12100	20	24	22	100	120	1.3	a
Z-16100	22	26	24	100	160	2.9	a
Z-21100	24	26	24	100	210	3.4	a
Z-25110	28	30	27	110	250	3.8	a
Z-32135	32	32	30	135	320	8	b
Z-42150	36	36	36	150	420	8.4	b
Z-64180	42	42	42	180	640	13.1	b
Z-84180	44	44	48	180	840	20	b
Z-110220	48	48	52	220	1100	35.3	b

Note: Split Pin - stainless steel, others - hot - dip galvanized steel
